REMBE® Explosion Safety

Hazard Oriented. Risk Appropriate. Reliable. Sustainable. Authentic. Safe.

handmade Explosion Safety
When a combustible material, an ignition source and atmospheric oxygen collide in a confined space, the result is an explosion. Preventative explosion safety measures aim to stop this potentially lethal mixture from occurring. However, in practice, the vast number of potential ignition sources alone almost always makes this impossible. Consequently, the most important steps towards explosion safety for industrial companies are protection measures that minimize the damage caused by an explosion. Industrial plants must always be protected against the consequences of explosions to ensure that employees are safe and production can quickly resume. After all, every hour of lost production costs money. In most cases, explosion safety can be provided cost-effectively through explosion venting and explosion suppression.
We are pleased to show you solutions tailored to your processes that will reduce the damage caused by an explosion to a negligible level – enabling you to resume production quickly after an explosion.

All REMBE® explosion vents are NFPA compliant and are certified in accordance with directive 2014/34/EU (ATEX) and EN 14797.

Learn more about Explosion Safety

Deflagration Venting with Explosion Vents

The right explosion vent for all applications and operating conditions.
In the event of a deflagration, an explosion vent will rupture, protecting the vessel by limiting the overpressure within it. The explosion is released into the surrounding environment in a controlled manner. Industrial processes vary widely depending on the sector and the product. No two processes are identical. For this reason, REMBE® supplies explosion vents in a variety of different shapes, materials, temperature and pressure resistances and many other specifications. We can supply you the optimum explosion vent for your requirements. You will receive a complete protection concept that is perfectly adapted to your process.
product overview

Explosion Isolation

Comprehensive protection for your plant.
Explosion isolation systems use components such as quench valves and explosion isolation flap valves. Chemical extinguishing barriers are also commonly used to smother propagating explosion flames. Valves and extinguishing barriers are capable of isolating components in both directions simultaneously. The objective of explosion isolation or decoupling is to protect adjacent parts of the plant and prevent the explosion from propagating. Explosion isolation is mandatory – secondary explosions in interconnected vessels would create a high-risk situation. Active systems have detectors or sensors which register the pressure rise or flames and trigger countermeasures, e.g. closing a valve.
product overview

Explosion Suppression

Nips the explosion in the bud.
Explosion suppression is an explosion protection measure in which the combustion of an explosive atmosphere in a closed or essentially closed volume is detected and stopped in the initial phase, thus preventing destructive pressure increases. A controller initiates the sudden release of extinguishing powder from the extinguishing bottle into the volume to be protected in the shortest possible time. An explosion is considered suppressed if the explosion pressure does not exceed the engineered strength of the affected volume, or the degree of flame propagation remains within specified limits and directed into safe open spaces.
product overview

Flameless Venting

Deliberately not on fire.
As early as 1988, REMBE® developed the first flameless explosion venting system. It was based on a process in which the flames are cooled extremely efficiently in the mesh filter of the flame absorber and extinguished immediately. The typical pressure waves and noise pollution that occur outside the vessel during an explosion are reduced to a harmless level. This guarantees maximum protection for employees and, in addition, allows the production plant to be set up in a process-optimized manner. Flameless indoor explosion venting makes expensive protection systems and complicated vent ducts a thing of the past.
product overview

Explosion Prevention

Warns you before things 'heat up'.
Technical aids are needed to recognise ignition sources at an early stage or even eliminate them completely. Similar to the 'driver assistance systems' in cars, these systems help to prevent accidents. Hidden dangers such as electrostatic charges, smouldering nests, smouldering and incipient fires can be very treacherous. Intelligent systems for grounding, temperature and gas monitoring can be used to recognise and eliminate such hazards.
product overview

Accessories

Accessories for your explosion vents.
In the event of an explosion, signaling units enable you to shut down a plant quickly in the event of an explosion and trigger isolation systems which protect adjacent parts of the plant. Automated processes also use intelligent signaling systems to monitor the status of the entire plant and any disruptions that occur. This is not only essential in venting ducts, it can also play an important role in free venting. Signaling units can be retrofitted to vents that have already been installed. For evaluation of the signals, we offer isolation amplifiers with relay outputs which guarantee an intrinsically safe closed-circuit current. The potential-free relay contact ensures that the plant is deactivated safely and the alarm functions correctly.
product overview

Software

Calculations according to EN + NFPA.

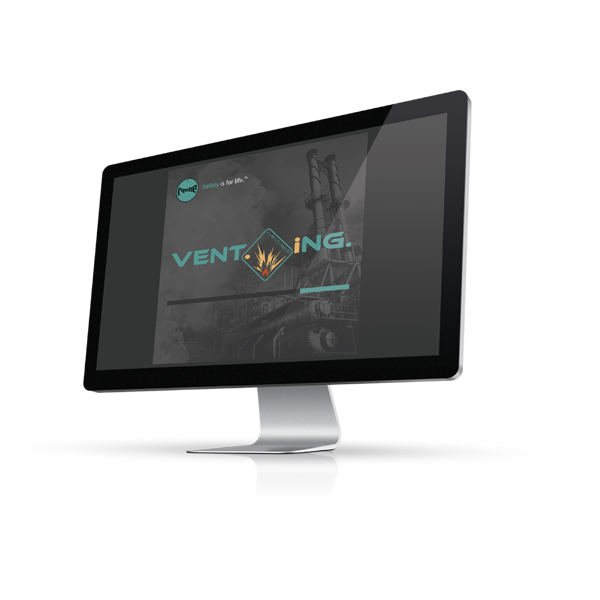

With VENT.iNG., a software is available which supports the explosion protection expert to apply the two most common explosion VENT.iNG. approaches in the world, following EN and NFPA.
discover VENT.ING.

BESS Explosion Safety Series

Optimised protection of next-generation BESS systems.
Battery energy storage systems (BESS) are changing our energy landscape - and REMBE® is setting new standards in the protection of these systems. No two BESSs are the same, and each requires its own customised approach. Our integrated approach utilises multiple layers of safety, combining early detection and flammable concentration reduction options with optimised deflagration ports to protect next-generation BESS assets. REMBE® offers a comprehensive range of products to protect BESS from explosions. Different product series enable optimal solutions for each BESS installation, each bringing unique benefits to your project.
product overview

Product overview

EGV

EGV

explosion vent
for zero to low pressure or vacuum.
EDP

EDP

explosion vent
for low to medium vacuum and pressure cycling.
MDX

MDX

explosion vent
for low burst pressure with high vacuum.
ODV, ODU

ODV, ODU

explosion vent
for high to full vacuum and pressure cycling.
EGV HYP

EGV HYP

explosion vent
for zero to low negative pressure applications.
ERO

ERO

explosion vent
for low to medium pressure + alternating pressure.
TARGO-VENT

TARGO-VENT

opening angle limiter
Add-on module to reduce the size of dangerous areas.
Q-Rohr®

Q-Rohr®

Flameless venting
The all-rounder.
Q-Rohr® DFE Gas

Q-Rohr® DFE Gas

Flameless venting
for exhaust ducts of Gas-Fueled Engines.
Q-Rohr® DFE Maritime

Q-Rohr® DFE Maritime

Flameless venting
for exhaust ducts of Dual-Fuel Engines.
Q-Rohr® 6T

Q-Rohr® 6T

Flameless venting
Special challenges with metal dusts.
Q-Box®

Q-Box®

Flameless venting
Perfect protection of the environment.
Q-Box® R3leaf™

Q-Box® R3leaf™

Flameless venting
Sustainable flameless venting of dust explosions.
Q-Ball® E

Q-Ball® E

Flameless venting
Maximum relief effectiveness, minimum weight for elevators.
Q-Ball® S

Q-Ball® S

Flameless venting
Stable + light as a feather for oscillating machines such as vibrating screens.
EXKOP® System

EXKOP® System

Explosion Isolation
Space-saving, bidirectional isolation.
ETX™

ETX™

Explosion Door
for dryers, automatically reclosing.
EXKOP® QV II

EXKOP® QV II

quench valve
Space-saving, bidirectional isolation.
EXKOP® QV III

EXKOP® QV III

quench valve
Space-saving, bidirectional isolation.
EXKOP® Express

EXKOP® Express

control system
controller for all isolation devices.
Q-Flap NX II

Q-Flap NX II

explosion isolation flap valve
Effectively isolated.
Q-Bic™

Q-Bic™

extinguishing agent barrier
Active isolation.
VENTEX®

VENTEX®

explosion safety valve
Explosion isolation valve.
REDEX® Slide

REDEX® Slide

Slide Valve
Active isolation of abrasive material.
RSV

RSV

Slide Valve
Active isolation at maximum explosion pressures.
CO.Pilot

CO.Pilot

CO detection system
Combined CO-Detection and humidity measurement.
GSMX-P

GSMX-P

pyrolysis gas detector
for use in ventilation ducts up to DN 1000.
REMBE® signaling, frames, gaskets + covers

signaling, frames, gaskets + covers

Accessories for your explosion vents.
VENT.iNG.

VENT.iNG.

Calculations according to EN + NFPA.
BESS.EGV

BESS.EGV

BESS Core Venting Series
Roof-mounted deflagration venting as the most economical solution.
BESS.EGV-IAF

BESS.EGV-IAF

BESS Core Venting Series
Roof-mounted vent panel with interior insulation.
BESS.IKLI-EGV

BESS.IKLI-EGV

BESS Core Venting Series
Roof-mounted vent panel with exterior insulation.
BESS.TGV

BESS.TGV

BESS Smart Venting Series
Innovative side-wall deflagration venting for ultimate flexibility.
BESS.Q.Vent

BESS.Q.Vent

BESS Premium Venting Series
Flameless venting for indoor BESS and sensitive environments.
GSME

GSME

Gas detection
for storage points, extraction + filter ­systems for the ­detection of ­combustion gases.
Hotspot

Hotspot

IR camera system
checks the surface temperature of the processed material.
Any Questions?
We would be happy to show you solutions tailored to your process that limit the effects of an explosion to a harmless level and ensure that production can be resumed quickly after an explosion event.
