BESS.EGV-IAF

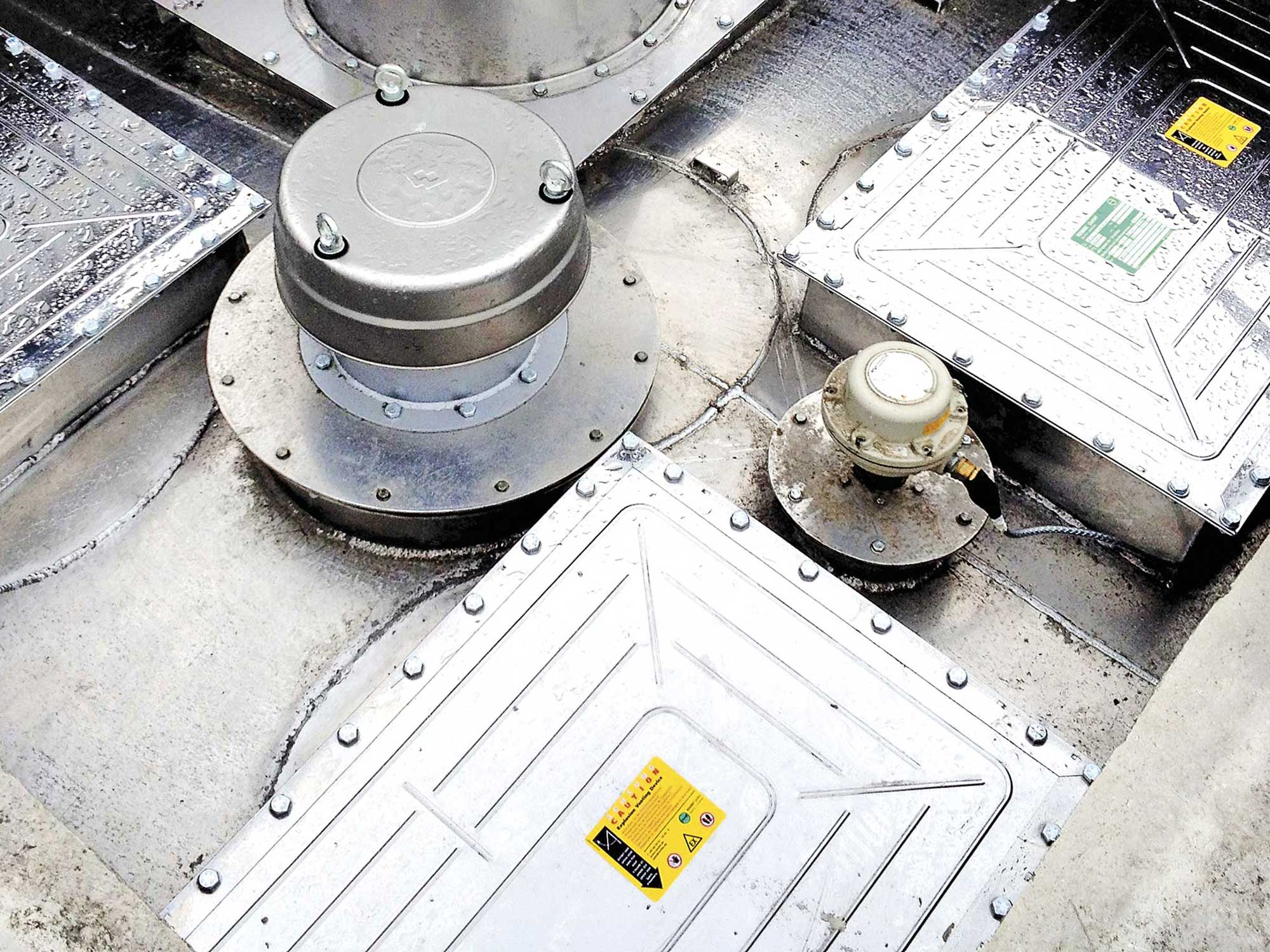

Roof-mounted vent panel with interior insulation.
BESS.EGV-IAF offers proven EGV deflagration venting performance with insulation placed on the inside of the panel, facing the BESS interior. Insulation properties can be customised to suit any BESS design.

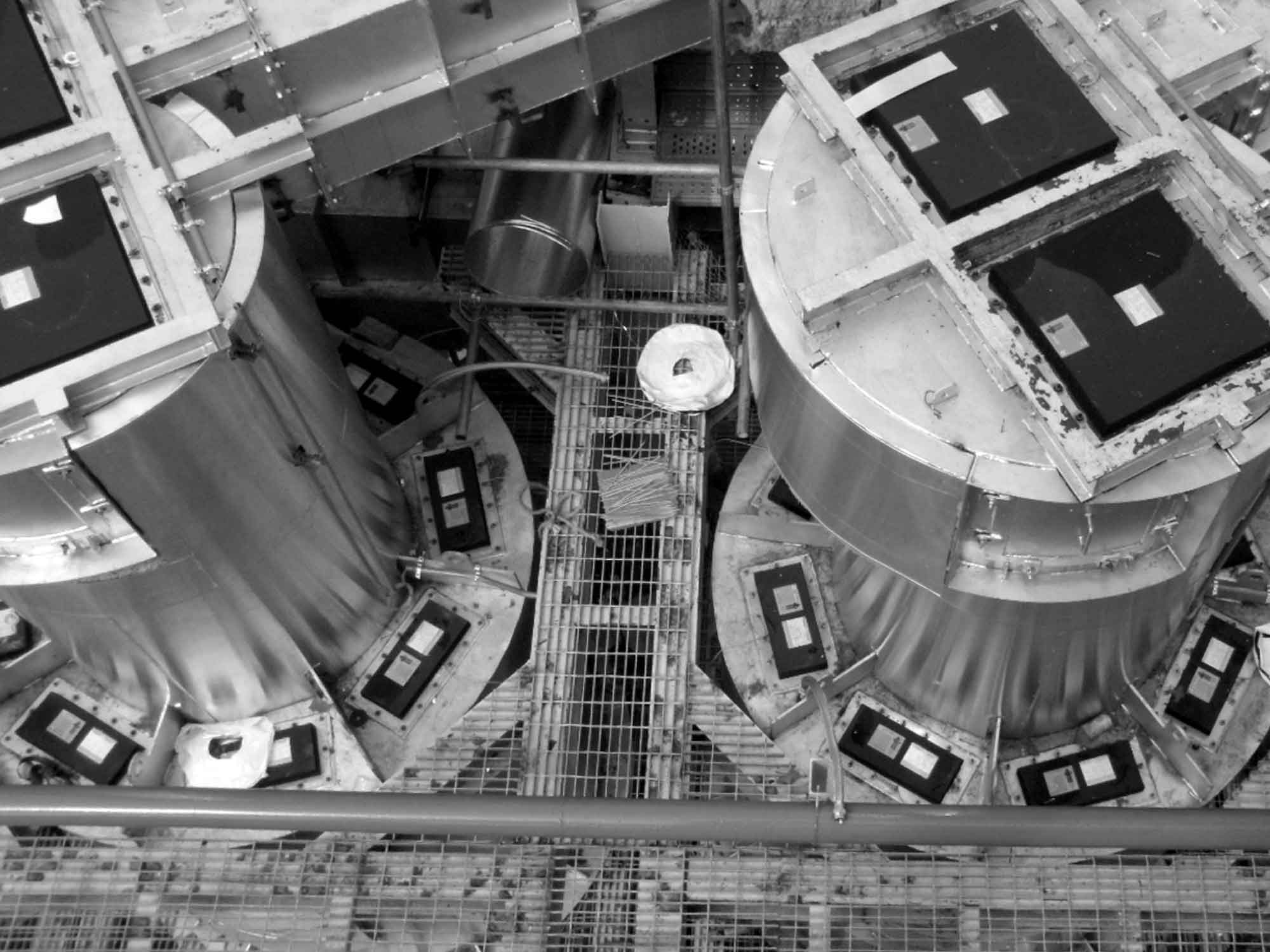

Application
BESS.EGV-IAF is the most economical solution for deflagration venting when insulation is needed. Panels are installed on the BESS roof and vent deflagrations upward to a safe location. The standard burst pressure is 0.1 bar at 22 °C (71.6°F), but can be modified to suit any BESS design, as low as 0.025 bar.
Mechanism
When pressure rises during a deflagration, the vent opens at the defined breaking point and releases pressure out of the BESS into the surrounding area.
Advantages
- High venting capacity and full bore opening due to low surface weight.
- High stability and opening speed through integrated bionic structure.
- Adapts perfectly to your BESS due to the wide range of EGV geometries available.
- Quick and easy installation as EGV is torque independent. No additional counter frame required.
- Significant space savings due to the integrated gasket and frame in the explosion vent.
- Flexible insulation options.
Models
BESS.EGV
Roof-mounted deflagration venting as the most economical solution.
The REMBE® explosion vent BESS.EGV offers optimum protection for your Battery Energy Storage Systems (BESS). BESS.EGV is available in a range of geometries with customisable burst pressures.
BESS.IKLI-EGV
Roof-mounted vent panel with exterior insulation.
BESS.IKLI-EGV offers proven EGV deflagration venting performance with insulation placed on the outside of the panel, on the exterior of the BESS. Insulation properties can be customised to suit any BESS design.
Technical data
Product parameters
Burst pressure Pstat | 25-500 mbar |
Max. permitted operating pressure | 50 % of Pstat |
Temperature | –40 to +180°C (–40 to +356°F) |
Material | Stainless steel |
Gasket material | FDA approved silicon gasket |
Tolerance | ± 20 % at standard burst pressure |
Recommended torque for M10 screws | 20 Nm |
Insulation | FEF |
Fire rating of insulation | UL 94 V 0 |
Insulation thickness | 25-100 mm |
Insulation properties | λ=0.035 W/m*K |
Our specialists will be pleased to assist you in finding a solution that matches your specific operating conditions.
Applications + Industries
- Battery Energy Storage Systems (BESS)
Certifications
Meets the requirements of NFPA 68
ATEX EC type
examination certificate no. FSA 04 ATEX 1538 X
SIL-Equivalent
SIL 4
